new design custom wick crimping and tabbing machine with fast speed

FOB Reference Price:Get Latest Price
$4,000.00 - $6,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
none
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
supercandle
Production Capacity:
120 pcs per minute
Dimension(L*W*H):
600*500*1250 mm
Weight:
100 kg
Certification:
ISO
Warranty:
One Year
Applicable Industries:
Building Material Shops, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
Product name:
automatic candle wick cutting machine
Application:
cut wick into pieces
Operate:
Simple Automatic Operation
Drive:
motor
wick tab base diameter:
12-15 mm
wick diameter:
3 mm
wick length:
20-300 mm
counter:
Yes
inverter:
Yes
PLC:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
The automatic candle wick wcrimping tabbing machine is packed in plywood case reinforced by a frame welded with angle steel bars.
Port
Dalian
Product Description

The function of a wick cutting machine is to cut the waxed wick into lengths and fasten wicks to metal tabs. The machine is automatic. Wick feed, crimp, and cut are all done in one operation. When there is a shortage of wick or tab, the machine stops automatically. A preset counter automatically shuts it down when the desired quantity is reached. The maximum production speed: 120 pcs/minute, and maximum length of wick is 200 mm. If you want a longer wick, we are glad to adjust the PLC setting of the machine for you.


Technical Specifications

Dimension:600*500*1250 mm

Weight: 100 kg

Power:0.37KW, 380V, 50HZ

Wick Sustainer:Ø12 mm, Ø12.5 mm, Ø14 mm, Ø14.5 mm

Cut Wick Length Range:20-500 mm

Production Speed:120 pcs/min at maximum (The longer the wick is, the slower the production speed is.)

Main Features

1) Wick feeding by step motor.

2) Adopting advanced PLC and invertor.

3) Wick length set by touch panel.

4) Auto stop when there is no wick or wick tab.

5) Auto stop when the preset quantity is reached.

6) User friendly.

Detailed Images

Control Box

The wick length and output value is set in the touch panel.  PLC  automatically adjusts the production speed to match the wick length. You can change the speed, but we recommend against it. With the inferior machines, the operator adjusts the screw on the swinging arm to change the  wick length. However,  the position change of the screw is not linear to the wick length, so it requires the operator a lot of experience and repeated trials to finally set the wick length.

Sensors

The sensors accurately detects it when there is a shortage of wick tab or wick, and automatically shut down the machine.

Step Motor

It feeds the wick in the length exactly set in the control box. The inferior machines use belts to feed the wick. When the belts are slack, the wick length will not be accurate.

Invertor and PLC

This is the brain of the machine. The parameters are already set before leaving the factory. Don't change them yourself.

Packing & Delivery

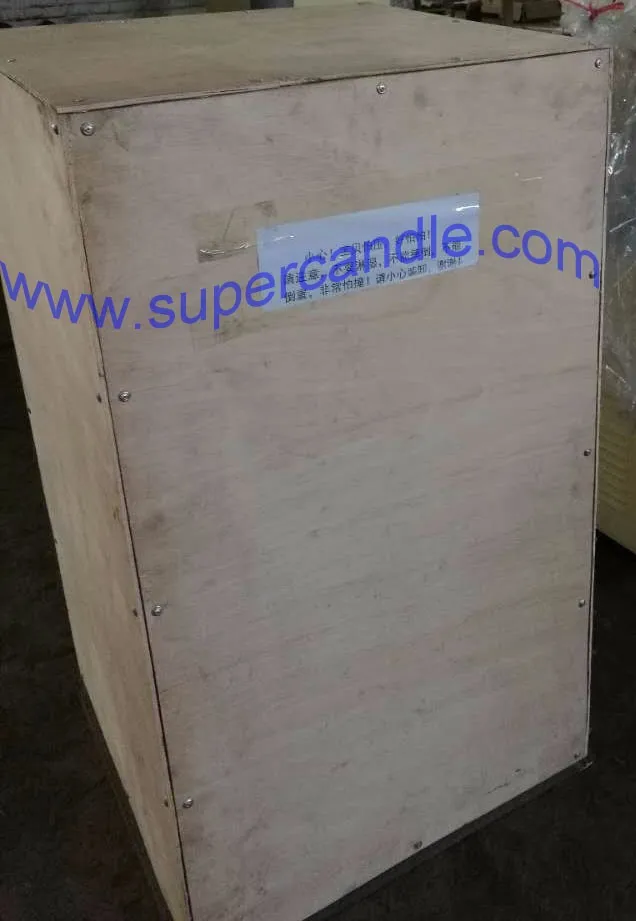

Plywood Case Package

Dimension: 700x700x1400 mm (LxWxH)

Gross Weight: 180 kg


The machine is wrapped with plastic film before being packed into the plywood case reinforced with a angle steel frame.

Production facility

Wire Cut Electrical Discharge Machining


High Frequency Quenching


Quality Control

Machine Designing

If the wick tabs used by customers are special in dimension or wick length is longer than normal, our general engineer has to adjust the machine design or the parameters of PLC to suit the special wick tabs or wick length.

Production Management

The machine has hundreds parts. Our production engineer assigns the part-manufacturing tasks to suitable machine tools according to the accuracy requirement of general engineer. He measures the parts to guarantee that they conform with the drawings.

Machine Assembling

Our assembly workers all have over 40 years of work experience. We are proud of this.

Test Run

All machines are test run after being assembled. We take photos and videos of testrun for our customers.

After-Sales Service

Training

We provide detailed operation manuals to teach customers how to operate and maintain the machines. Videos and photos are also provided as a support. We welcome customers
to visit us to get trained. Whenever customers have any questions of production of tabbed wicks, we are glad to provide technical support.

Warranty

All our machines have a one-year warranty.

Spare Parts & Wearing Parts

We usually send some wearing parts and spare parts with the machines. In the warranty period, if the spare parts are not damaged due to the misoperation, they are provided free, and the shipping is free, too. Out of the warranty period, customers have to pay for spare parts and shipping.
