fully automatic candle making machines tealight candle pressing machine wholesale

FOB Reference Price:Get Latest Price
$600.00 - $1,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
XZHL
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Production Capacity:
3000 pcs per hour
Place of Origin:
Hebei, China
Brand Name:
supercandle
Dimension(L*W*H):
1000x750x1510 mm
Weight:
850 kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
automatic telaight candle making machine
prouction speed:
3000 pcs/hour
Operate:
automatic
Application:
candle pressing
candle diameter:
50 mm maximum
candle height:
50 mm maximum
hydraulic:
No
Pneumatic:
No
Top Press:
Yes
Bottom Press:
Yes
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
The machine is wrapped with plastic film before being packed in plywood cases reinforced bya frame welded with angle steel bars.
Port
Dalian
Video Description
Product Description

Product Application

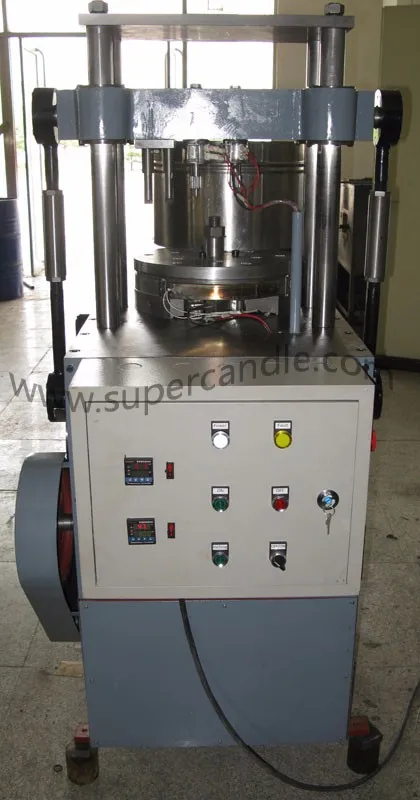

XZHL automatic tealight candle making machine is able to press wax beads into tealight, votive, and floater. It is simple in structure, and user-friendly. It is electric driven, and automatic. XZHL automatic tealight candle making machine is fast in candle production, and can produce as many as 3000 candles per hour. All the workers have to do is to pick up the tealight candles, insert tabbed wicks into wick holes, and load tealight candles into tealight cups.  XZHL automatic tealight candle making machine can make candles in different size and shape by changing molds. XZHL automatic tealight candle making machine is able to process palm wax beads, stearic acid beads, as well as paraffin wax beads. With XZHL automatic tealight candle making machine, you cand say goodbye to the lengthy work of melting wax, pouring molten wax into the machine and waiting for the wax to cool.

SPECIFICATIONS FOR XZHL AUTOMATIC TEALIGHT CANDLE MAKING MACHINE
motor power of XZHL automatic tealight candle making machine
KW
2.2
heating power of XZHL automatic tealight candle making machine
Kw
1.3
maximum working pressure of XZHL automatic tealight candle making machine
ton
3
production speed of XZHL aautomatic tealight candle making machine
pcs/hour
3000
candle diameter of XZHL automatic tealight candle making machine
mm
30-50
candle height of XZHL automatic tealight candle making machine
mm
12-50
dimension of XZHL automatic tealight candle making machine
mm
1000x750x1510
weight of XZHL automatic tealight candle making machine
kg
850

Main Features

1) Simple structure,  easy in installation and operation.

2) Working with all types of wax beads.


Detailed Images

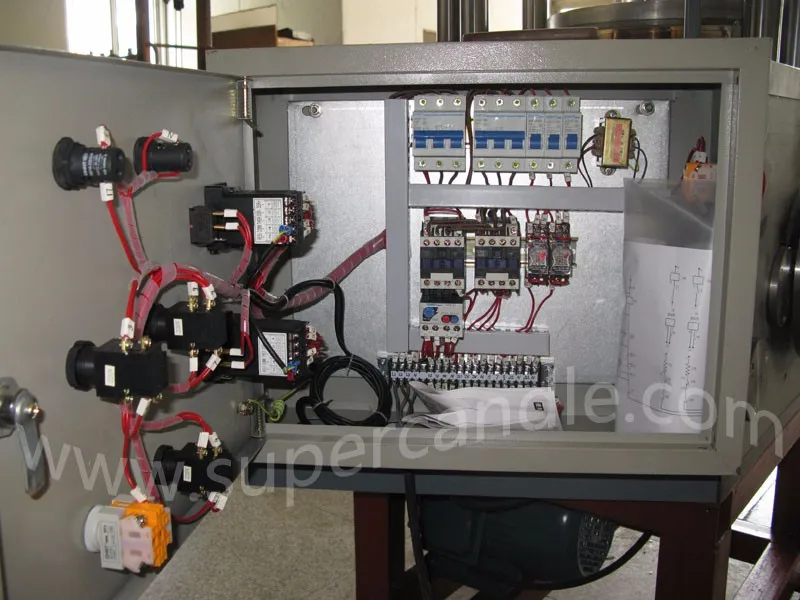

Electric Parts

All the electric components of XZHL automatic machine candle press are of famous Chinese brands.

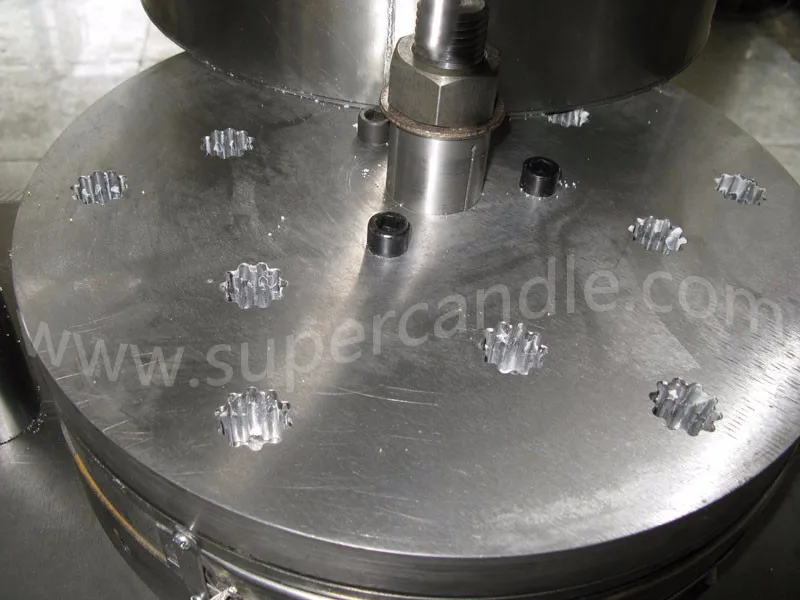

Mold Disc of XZHL Automatic Tealight Candle Extruder Machine


The cavities of mold disc are manufactured with column jig boring machine, whose accurate positioning ensures that in the future if you order another set of mold, you can use it to produce candles immediately after installing it.

Therefore, in the future, although your machine is not here, we can still manufacture mold disc and presses according to your requirement.

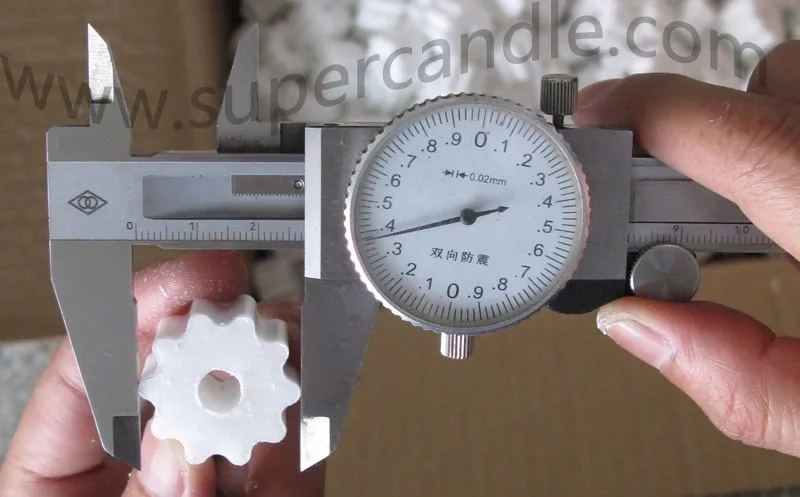

Products


This is one wax product made by XZHL automatic machine candle press.

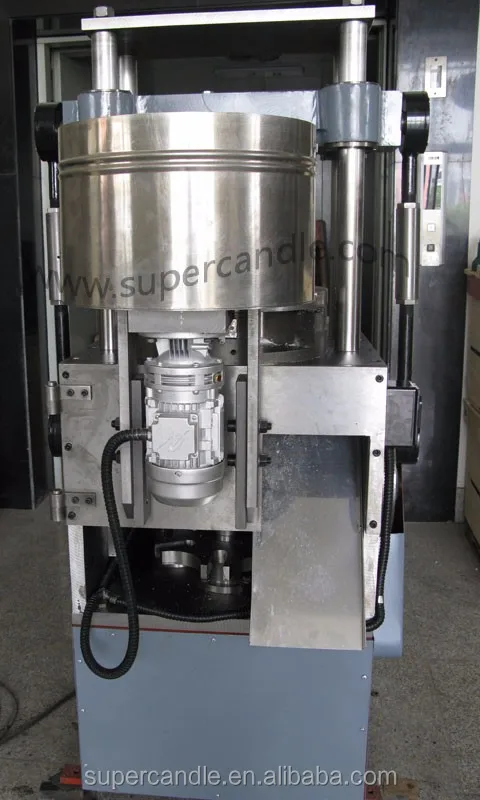

Wax Hopper of XZHL Automatic Tealight Candle Making Machine


The wax hopper is made of stainless steel to prevent corrosion by acid in palm wax or stearic acid.

Packing & Delivery
Packaging
Size
11290mm(L) * 880mm (W) * 1830mm (H)
Weight
0.95 T



Packaging Details
XZHL automatic tealight candle making machine is wrapped with plastic film for protection from dust, and then packed in plywood cases reinforced with angle steel frame.
Production Facility

Wire Cut Electrical Discharge Machining

It is to make cams, gears and presses of the machines.

Column Jig Boring Machine

It is for high precision hole making operation.

NC Milling Machine

It is to make cams, molds and rods.

High Frequency Quenching

The mold discs have to be heat treated.

Quality Control

Machine Designing

Our general engineer studies candle samples or candle drawings provided by customers and makes sure that they can be produced by machines. If not, he makes revision to candle shape or dimension and sends the revised drawing back to customers for approval.

Production Management

One candle machine has hundreds or even thousands of parts. Our production engineer assigns the part-manufacturing tasks to suitable machine tools according to the accuracy requirement of general engineer. He measures the parts to guarantee that they conform with the drawings.

Machine Assembling

Our assembly workers all have over 40 years of work experience. We are proud of this.

Test Run

All machines are test run after being assembled. We take photos and videos of testrun for our customers.

After-Sales Service

Q: Do you supply tealight machines?
A: Yes. As you can see from our web site, we supply 3 types of tealight machines according to the candle making methods.

Q: Can you elaborate these 3 types of machines in details?
A: Sure. Tealight molding machine is the traditional one. Pour molten wax into mold cavities of a tealight molding machine, wait until the wax is cold to eject tealight candles out. Then the tealight candles are wicked and cupped by hand. It is able to produce tealight candles in any colors, scented or not. The only draw back is that if your customer wants to buy a tealight in different size or shape, you will have to buy a new machine. The molds of the tealight molding machine can not be changed.
A tealight candle pressing machine directly presses wax beads into tealight candles. It is only able to produce white unscented tealight candles, but its production speed is the fastest. One XZHL tealight candle pressing machine is able to produce 3000 tealight candles per hour. By changing mold, it can produce different tealight candles.
The star of the tealight machines is the wax filling machine. It sells like a wild fire. Glue a piece of tabbed wick into an empty tealight cup, use the wax filling machine to fill the cup, and you get a perfect tealight candle. You don't need to change mold or buy a new machine. With one wax filling machine, you can produce any tealight candles in any colors and with any scents. Each cup is filled with the same amount of wax automatically. In fact, you can use it to produce any jar candles. It is the best helper of a candle maker.

Q: Is there any warranty with your tealight machines?
A: Yes, all our machines are with a one-year warranty.

Q: Do your tealight machines come with an operation manual?
A: Yes, we send you a detailed operation manual with your machine.

Q: What info should I provide if I want to buy a tealight molding machine?
A: We need you to give us a candle sample or drawing with dimension. You may rest assured that tealight candles made with your machine will be the same as your sample or drawing.

Q: What info should I provide if I want to buy a tealight pressing machine?
A: We need you to give us a candle sample or drawing with dimension and your power supply. You may rest assured that tealight candles made with your machine will be the same as your sample or drawing. Most of candle makers have the power supply of three phase 380V, but some only have the power supply of single phase 220V. USA voltage is special: the USA three phase voltage is 220V, and single phase voltage is 110V. We will have to buy motors to work with your voltage.

Q: What info should I provide if I want to buy a wax filling machine?
A: We need you to tell us which country you are in and your power supply. Different country use different plugs. We can supply you with plug adaptors at a cost. This machine works with power supply of single phase 220V. USA voltage is special: the USA single phase voltage is 110V. You will have to get a voltage transformer, if you are in USA. We can supply you with a transformer, if you need.

Q: How are your machines packed?
A: The tealight molding machine and tealight pressing machine are packed in plywood cases reinforced with a steel bar frame. The wax filling machine is packed in a carton.

Q: How are your machines shipped?
A: The tealight molding machine and tealight pressing machine are recommended to be shipped by ocean. Please tell us about your nearest ocean port.
The wax filling machine is small, and have to be shipped by FedEx, UPS, TNT or DHL Express. We need your company name, detailed shipping address, postal code, phone number and name of contact person.

Q: What is the delivery time?
A: The tealight molding machine and tealight pressing machine can be ready for shipment in 30 days after your payment arrives. The wax filling machine can be ready for shipment in 5-10 days after your payment arrives.
