small automatic pillar bougie candle making machines in China

FOB Reference Price:Get Latest Price
$600.00 - $1,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
none
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Production Capacity:
60 pcs per hour
Place of Origin:
Hebei, China
Brand Name:
supercandle
Dimension(L*W*H):
1400*500*1000mm
Weight:
150kg
Certification:
ISO
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Type:
semi automatic
machine frame:
steel
mold material:
seamless copper tube
Application:
molding pillar candles
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
The pillar candle machine is wrapped with plastic film for protection from dust, and then packed in one plywood case reinforced with a frame welded with square steel tubes.
Port
Dalian
Product Description

Our pillar candle  machines are easier to use than individual metal candle molds and the production speed is much faster. Pour the wax into mold cavities, wait until the wax is fully cold to crank out all the pillar candles. The pillar candle machines can be either drrectly wicking or with wick pins.They are compact and druable, and can run 24 hours a day annd 365 days  a year. They are usually divided into 4 types according to the candles shape: cylinder pillar, fluted pillar, spiral pillar and star pillar. The mold tubes are made of seamless copper tubes. We build machines according to your candle dimension and shape. We are glad to share with you our experience to help you set up your candle factory.

Main Features

1) Simple in structure, and user friendly.

2) Water cooled, and the production speed is fast.

Detailed Images

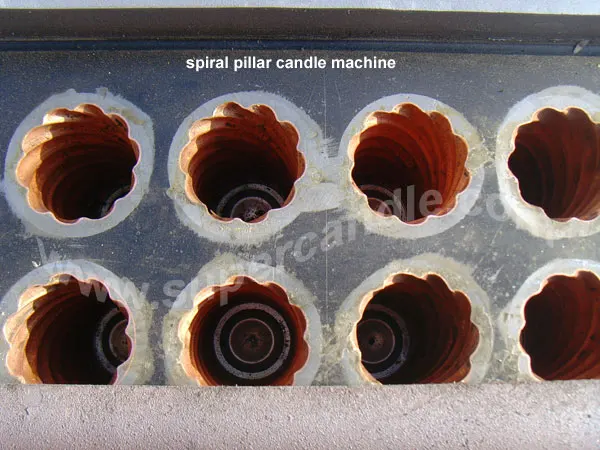

Mould Cavities

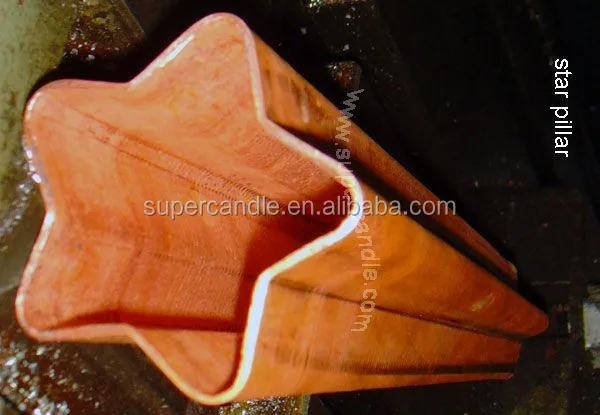

The mould cavities of our all our pillar candle machines are made of seamless copper tubes.

Cooling Water Jacket

The builtin cooling water jacket helps the wax to cool faster, increasing the production speed.

Candle Ejection Piston Heads

The piston heads are usually made of aluminum to be wear-proof.

Production Facility

Wire Cut Electrical Discharge Machining

It is used to make mandrels for drawing the copper mold cavities.

Column Jig Boring Machine

It is for high precision hole making operation.

NC Milling Machine

It is to make the installation holes on the cooling water jacket to install the mold cavities.

High Frequency Quenching

The bevel gears have to be heat treated.

Packing & Delivery
Packaging
Size
1430mm (L) * 550mm(W) * 1200mm (H)
Weight
180kg



Packaging Details
The machine is wrapped with plastic film for protection from dust, and then packed in one plywood case reinforced with a frame welded with square steel tubes.
Quality Control

Machine Designing

Our general engineer studies candle samples or candle drawings provided by customers and makes sure that they can be produced by machines. If not, he makes revision to candle shape or dimension and sends the revised drawing back to customers for approval.

Production Management

One candle machine has hundreds or even thousands of parts. Our production engineer assigns the part-manufacturing tasks to suitable machine tools according to the accuracy requirement of general engineer. He measures the parts to guarantee that they conform with the drawings.

Machine Assembling

Our solder welders and assembly workers all have over 20 years of work experience. We are proud of this.

Test Run

All machines are test run after being assembled. We take photos and videos of testrun for our customers.

After-Sales Service

Training

We provide detailed operation manuals to teach customers how to operate and maintain the machines. Videos and photos are also provided as a support. We welcome customers to visit us to get trained. Whenever customers have any questions of candle production, we are glad to provide technical support.

Warranty

All our machines have a one-year warranty.

Spare Parts and Wearing Parts

We usually send some wearing parts and spare parts with the machines. In the warranty period, if the spare parts are not damaged due to the misoperation, they are provided free, and the shipping is free, too. Out of the warranty period, customers have to pay for spare parts and shipping.
