new product custom semi automatic tealight candle making machine design paraffin wax tea light moulding machine used candle

FOB Reference Price:Get Latest Price
$600.00 - $1,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
none
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Production Capacity:
720 pcs per hour
Place of Origin:
Hebei, China
Brand Name:
supercandle
Dimension(L*W*H):
1400*500*1000mm
Weight:
100kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
tealight molding machine
production speed:
600-720 pcs/hour
machine frame:
steel
Operate:
manual operation
mold material:
seamless copper tube
Application:
mold tealiht candles
cooling:
water
wick pin:
yes
motor drive:
no
candle diameter:
37-40 mm
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
The tea light candle machine is packed in seaworthy plywood cases reinforced with a frame welded with square steel tubes.
Port
Dalian
Video Description

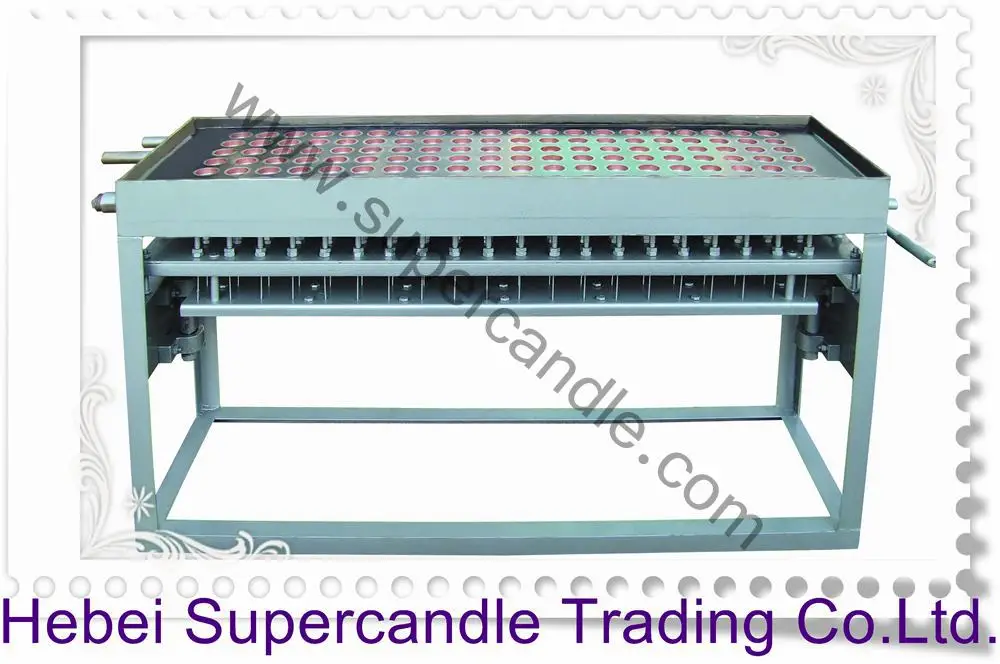

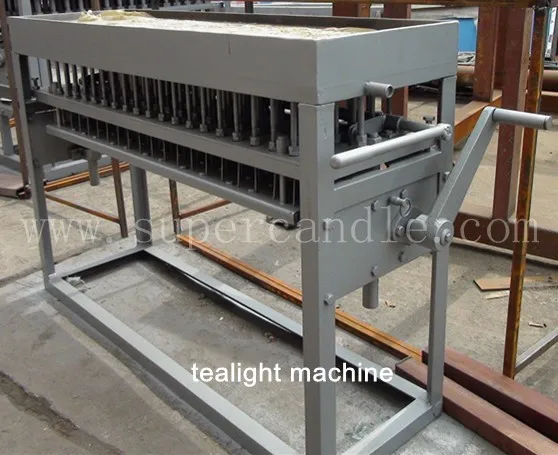

Product Description

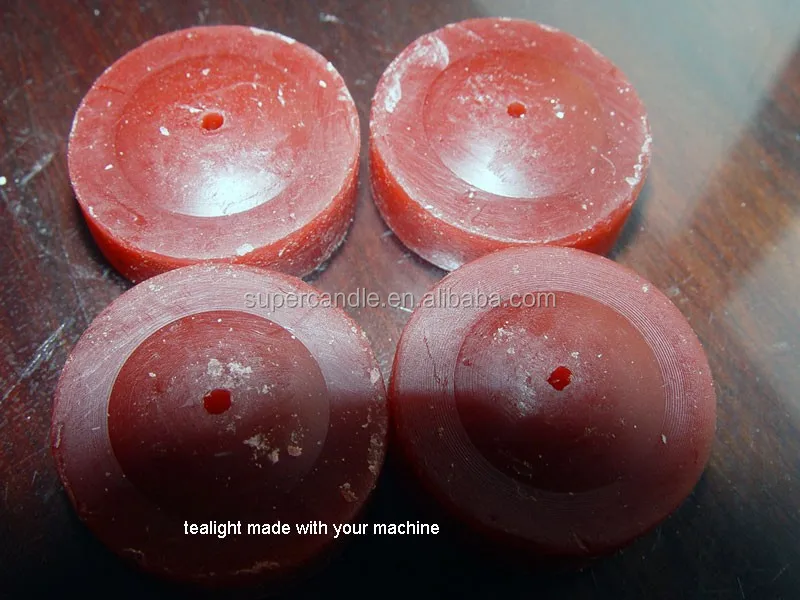

Our tea light candle machines are simple in structure, and user friendly. They are made to be used 24/7 if that's how long you want them to run. Just basic beautiful candle making each turn of the wheel with no power constraints. You have got to love that! Each tealight candle is with a wick hole in the center for you to insert the tabbed wick. We build the machines according to your candle dimension and shape. We are glad to share with you our experience to help you set up your candle factory.

Main Features

1) Simple structure  ,easy to operate and maintain.

2) Water cooled and the production speed is fast.


Detailed Images

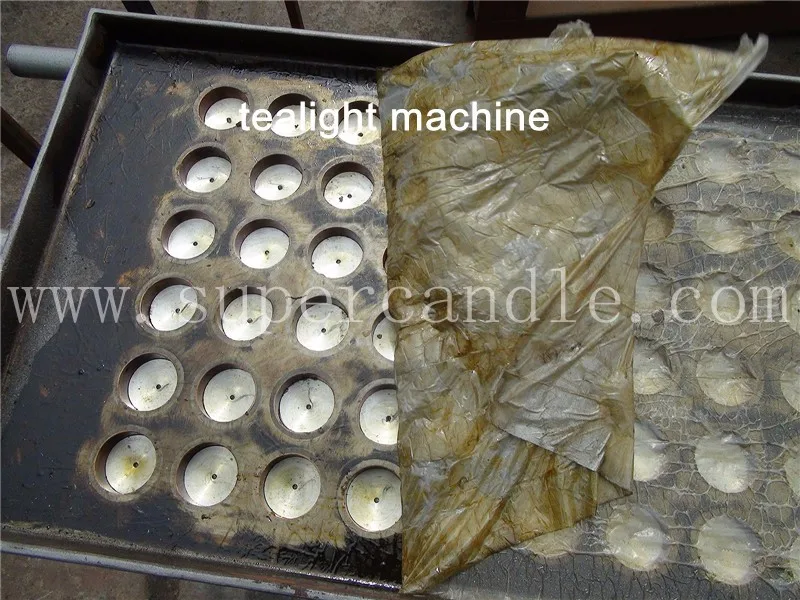

Mold Cavities


They are made of seamless copper tubes with mirror finish. The mold cavities of inferior machines are made of welded galvanized steel tubes which may break open  and leak water if an operator forces the candles out before they are completely cold.

Candle Ejection Piston heads


They are made of aluminum casting and wear-proof. The piston heads of inferior machines are made of lead or tin which wear away after a period of usage, causing wax leakage.

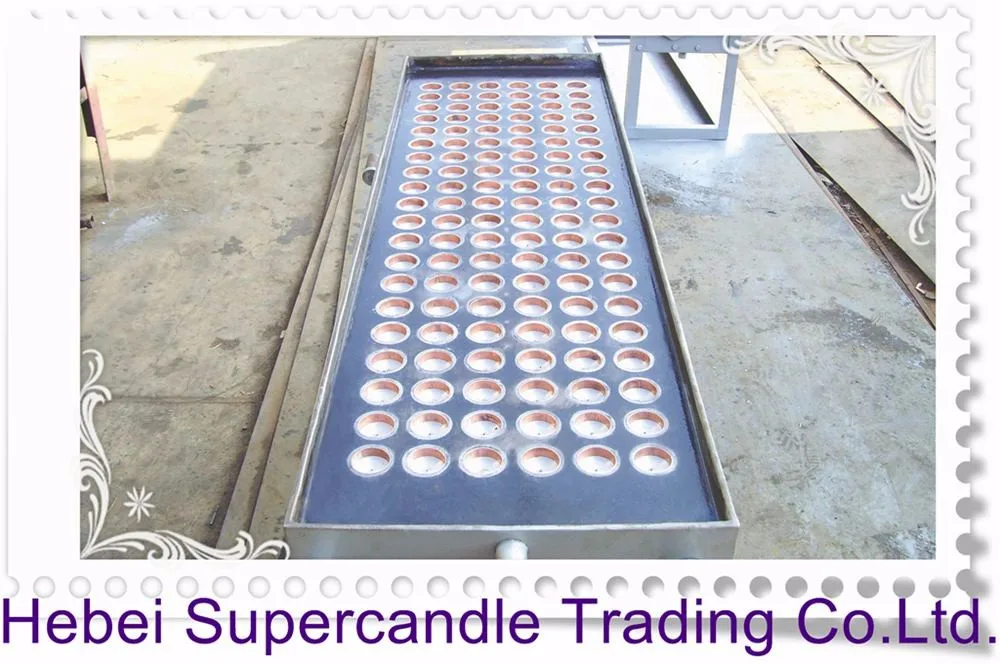

Cooling Water Jacket


The machine is with a builtin cooling water jacket to increase the production speed.

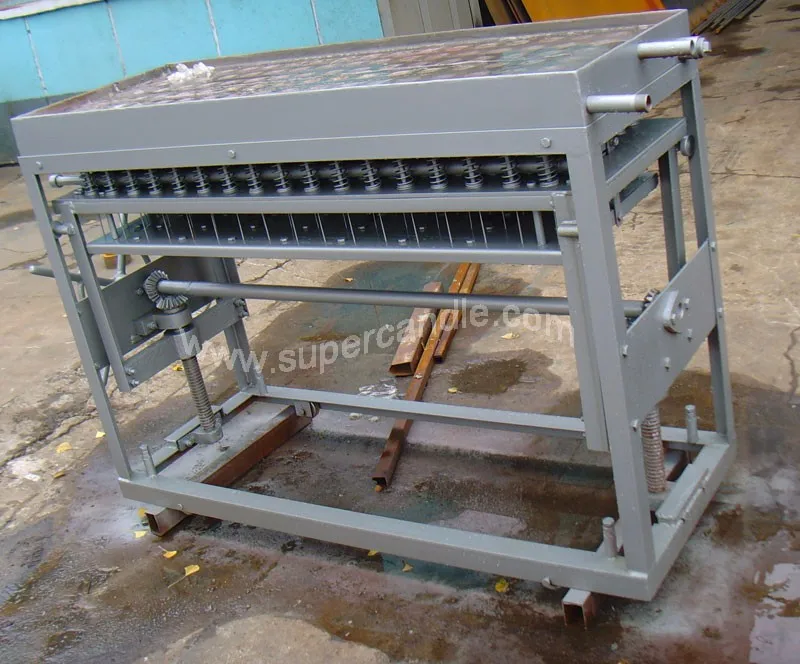

Retractable Wick Pins


The wick pins can be easily lowered to avoid clashing with the scraper when the operator is cleaning away the excess wax in the wax trough. They can be raised to break open the stuck wick holes after the excess wax is scraped away.

Packing & Delivery
Packaging
Size
1450x500x1100mm (LXWXH)
Weight
150 kg



Packaging Details
The tea light candle machine is wrapped with plastic film for protection from dust, and packed in a plywood case reinforced with  a frame welded with square steel tubes.
Production Facility

Wire Cut Electrical Discharge Machining

It is used to make wick pins and mandrels for drawing the copper mold cavities.

Column Jig Boring Machine

It is for high precision hole making operation.

NC Milling Machine

It is to make the installation holes on the cooling water jacket to install the mold cavities.

High Frequency Quenching

The bevel gears have to be heat treated.

Quality Control

Machine Designing

Our general engineer studies candle samples or candle drawings provided by customers and make sure that they can be produced by machines. If not, he makes revision to candle shape or dimension and sends the revised drawing back to customers for approval.

Production Management

One candle machine has hundreds or even thousands of parts. Our production engineer assigns the part-manufacturing tasks to suitable machine tools according to the accuracy requirement of general engineer. He measures the parts to guarantee that they conform with the drawings.

Machine Assembling

Our solder welders and assembly workers all have over 20 years of work experience. We are proud of this.

Test Run

All machines are test run after being assembled. We take photos and videos of testrun for our customers.

FAQ

Q: Do you supply tealight machines?
A: Yes. As you can see from our web site, we supply 3 types of tealight machines according to the candle making methods.

Q: Can you elaborate these 3 types of machines in details?
A: Sure. Tealight molding machine is the traditional one. Pour molten wax into mold cavities of a tealight molding machine, wait until the wax is cold to eject tealight candles out. Then the tealight candles are wicked and cupped by hand. It is able to produce tealight candles in any colors, scented or not. The only draw back is that if your customer wants to buy a tealight in different size or shape, you will have to buy a new machine. The molds of the tealight molding machine can not be changed.
A tealight candle pressing machine directly presses wax beads into tealight candles. It is only able to produce white unscented tealight candles, but its production speed is the fastest. One XZHL tealight candle pressing machine is able to produce 3000 tealight candles per hour. By changing mold, it can produce different tealight candles.
The star of the tealight machines is the wax filling machine. It sells like a wild fire. Glue a piece of tabbed wick into an empty tealight cup, use the wax filling machine to fill the cup, and you get a perfect tealight candle. You don't need to change mold or buy a new machine. With one wax filling machine, you can produce any tealight candles in any colors and with any scents. Each cup is filled with the same amount of wax automatically. In fact, you can use it to produce any jar candles. It is the best helper of a candle maker.

Q: Is there any warranty with your tealight machines?
A: Yes, all our machines are with a one-year warranty.

Q: Do your tealight machines come with an operation manual?

A: Yes, we send you a detailed operation manual with your machine.

Q: What info should I provide if I want to buy a tealight molding machine?
A: We need you to give us a candle sample or drawing with dimension. You may rest assured that tealight candles made with your machine will be the same as your sample or drawing.

Q: What info should I provide if I want to buy a tealight pressing machine?
A: We need you to give us a candle sample or drawing with dimension and your power supply. You may rest assured that tealight candles made with your machine will be the same as your sample or drawing. Most of candle makers have the power supply of three phase 380V, but some only have the power supply of single phase 220V. USA voltage is special: the USA three phase voltage is 220V, and single phase voltage is 110V. We will have to buy motors to work with your voltage.

Q: What info should I provide if I want to buy a wax filling machine?
A: We need you to tell us which country you are in and your power supply. Different country use different plugs. We can supply you with plug adaptors at a cost. This machine works with power supply of single phase 220V. USA voltage is special: the USA single phase voltage is 110V. You will have to get a voltage transformer, if you are in USA. We can supply you with a transformer, if you need.

Q: How are your machines packed?
A: The tealight molding machine and tealight pressing machine are packed in plywood cases reinforced with a steel bar frame. The wax filling machine is packed in a carton.

Q: How are your machines shipped?
A: The tealight molding machine and tealight pressing machine are recommended to be shipped by ocean. Please tell us about your nearest ocean port.
The wax filling machine is small, and have to be shipped by FedEx, UPS, TNT or DHL Express. We need your company name, detailed shipping address, postal code, phone number and name of contact person.

Q: What is the delivery time?
A: The tealight molding machine and tealight pressing machine can be ready for shipment in 30 days after your payment arrives. The wax filling machine can be ready for shipment in 5-10 days after your payment arrives.
