custom industrial manual seamless metal votive candle molds lot of 12

FOB Reference Price:Get Latest Price
$600.00 - $1,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
supercandle
Model Number:
none
Shaping Mode:
Preform Mould
Product Material:
Copper
Product:
Household Product
Product name:
votive candle machine
Application:
produce votive candles
Operate:
Manual Operation
machine frame:
steel
mold:
seamless copper tube
cooling:
water
wick pin:
Yes
diameter of wick pin:
2.6 mm
production speed:
204 candles per hour
Is there a down harvester verison?:
Yes
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
China industrial manual votive candle making machines are wrapped with plastic film for protection from dust, and then packed in one plywood case reinforced with a frame welded with steel tubes.
Port
Dalian
Product Description

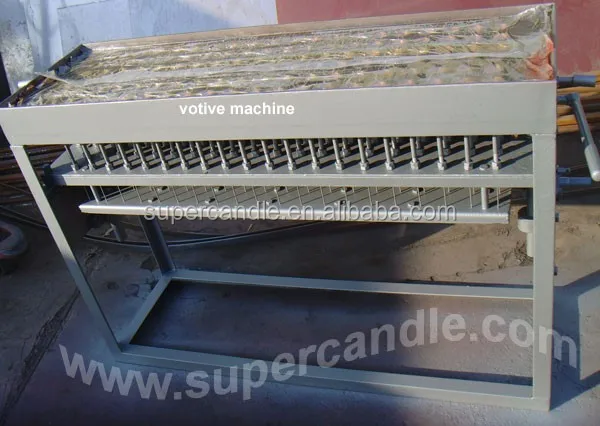

China industrial manual votive candle making machines are with retractable wick pins, which give all votives a wick hole for the tabbed wicks to be inserted through.

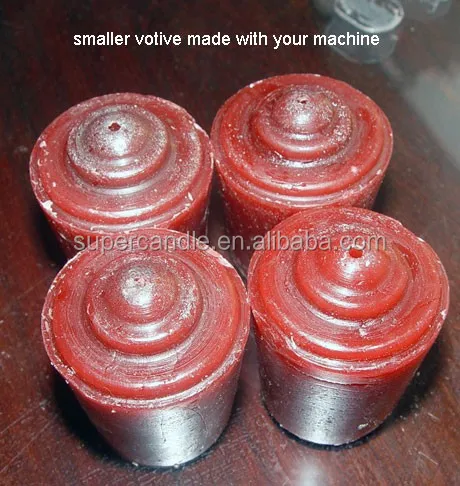

Pour the molten wax into the mold cavities of a votive candle making machine. Rotate the hand wheel when the wax is completely cold, and all 100 shiny and beautiful votives are ejected out all at once.

These votive candle making machines are water cooled. They can save you a lot of labor and time.

The votive candle making machines are manual, so the votives made with our machines are still hand made votives.

Our votive candle making machines are compact and durable.

We build the votive candle making machines according to your candle dimension and shape. We are glad to share with you our experience to help you set up your candle factory.

Main Features

1) Simple in structure, and user friendly

2) Water cooled, and the productio speed is fast.

3) with retractable wick pins.

Detailed Images

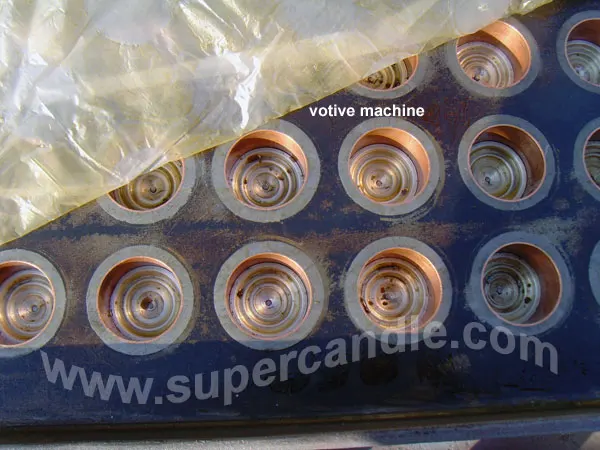

Mold Cavities

They are made of seamless copper tubes with mirror finish.

Retractable Wick Pins

The wick pins can be easily lowered to avoid clashing with the scraper when the operator is cleaning away the excess wax in the wax trough. They can be raised to break open the stuck wick holes after the excess wax is scraped away.

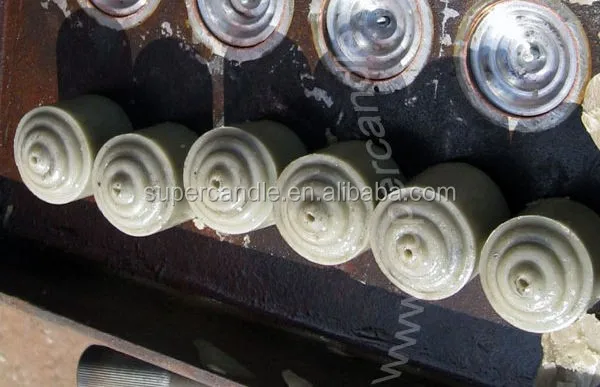

Candle Ejection Piston heads

They are made of aluminum casting and wear-proof. The piston heads of inferior machines are made of lead or tin which wear away after a period of usage, causing wax leakage.

Packing & Delivery
Packaging
Size
1450x500x1100mm (LXWXH)
Weight
150 kg



Packaging Details
The candle machine is wrapped with plastic film for protection from dust, and packed in a plywood case reinforced with a frame welded with square steel tubes.
Production facility

Wire Cut Electrical Discharge Machining

It is used to make wick pins and mandrels for drawing the copper mold cavities.

Column Jig Boring Machine

It is for high precision hole making operation.

NC Milling Machine

It is to make the installation holes on the cooling water jacket to install the mold cavities.

High Frequency Quenching

The bevel gears have to be heat treated.

Quality Control

Machine Designing

Our general engineer studies candle samples or candle drawings provided by customers and make sure that they can be produced by machines. If not, he makes revision to candle shape or dimension and sends the revised drawing back to customers for approval.

Production Management

One candle machine has hundreds or even thousands of parts. Our production engineer assigns the part-manufacturing tasks to suitable machine tools according to the accuracy requirement of general engineer. He measures the parts to guarantee that they conform with the drawings.

Machine Assembling

Our solder welders and assembly workers all have over 20 years of work experience. We are proud of this.

Test Run

All machines are test run after being assembled. We take photos and videos of testrun for our customers.

After-Sales Service

Training

We provide detailed operation manuals to teach customers how to operate and maintain the machines. Videos and photos are also provided as a support. We welcome customers
to visit us to get trained. Whenever customers have any questions of candle production, we are glad to provide technical support.

Warranty

All our machines have a one-year warranty.

Spare Parts & Wearing Parts

We usually send some wearing parts and spare parts with the machines. In the warranty period, if the spare parts are not damaged due to the misoperation, they are provided free, and the shipping is free, too. Out of the warranty period, customers have to pay for spare parts and shipping.
