The industrial semi-automatic dinner stick pillar candle making machines are wrapped with plastic film for protection from dust, and then packed in one plywood case reinforced with a frame welded with square steel tubes.
1 - 10
To be negotiated

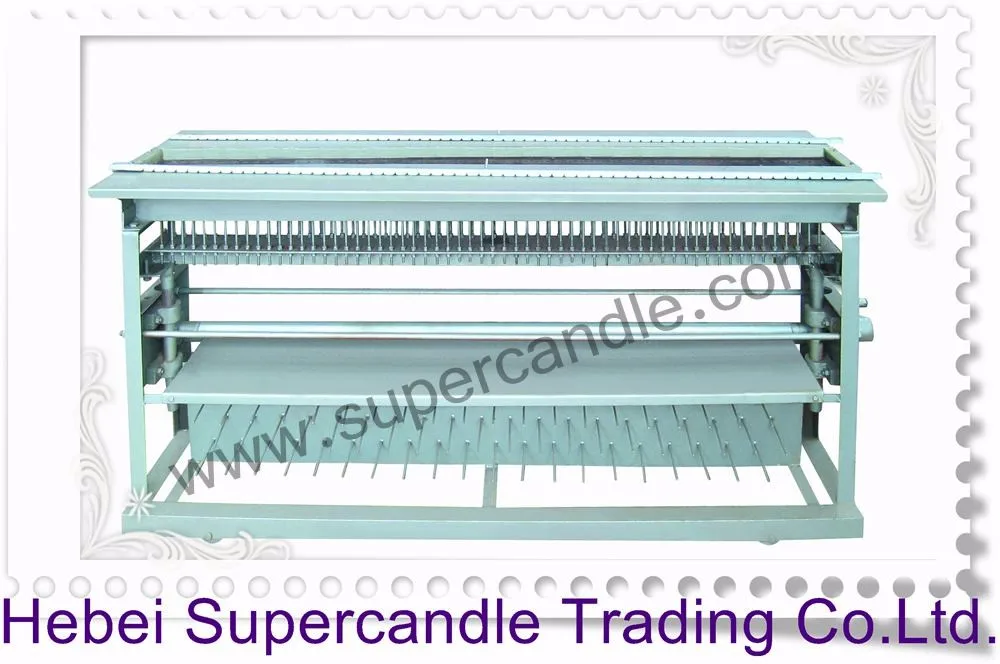

China good price industrial semi-automatic dinner stick pillar candle making machines are usually divided into 5 types according to the quantity of mold cavities: 60, 120, 180 and 240 and 500.

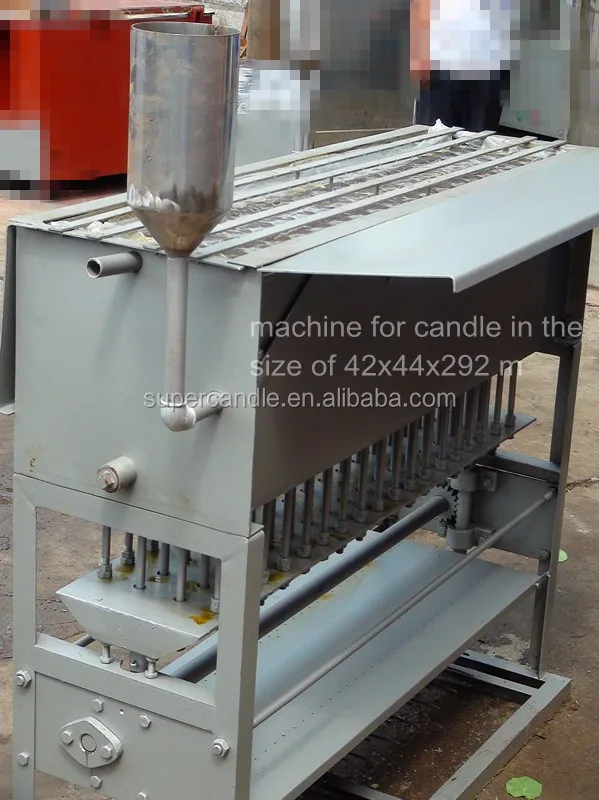

Our industrial semi-automatic dinner stick pillar candle making machines are simple in structure, and user friendly. Pour the molten wax into mold cavities. When the wax is completely cold, rotate the hand crank, and the shiny beautiful candles rise magically out of molds all at once.
The wicking system of the semi-automatic dinner candle making machines is smartly designed and the wicks are automatically pulled up when candles are ejected out.
All our industrial semi-automatic dinner stick pillar candle making machines are designed to run 24/365. They are compact and durable.
We build machines according to your candle dimension and shape. We are glad to share with you our experience to help you set up your candle factory.
1) Simple structure ,easy to operate and maintain.
2) Water cooled, and the production speed is fast.
The mould cavities of our semi-automatic dinner candle making machines are made of seamless copper tubes.
Cooling Water Jacket
The builtin cooling water jacket helps the wax to cool faster, increasing the production speed.
Candle Ejection Piston Heads
The piston heads are usually made of aluminum to be wear-proof. The piston heads of spiral candle machines are even made of brass for better protection.
Packing & Delivery
1430mm (L) * 550mm(W) * 1200mm (H)
The semi-automatic dinner stick pillar candle making machine is wrapped with plastic film for protection from dust, and then packed in one plywood case reinforced with a frame welded with square steel tubes.
Wire Cut Electrical Discharge Machining
It is used to make wick pins and mandrels for drawing the copper mold cavities.
Column Jig Boring Machine
It is for high precision hole making operation.
NC Milling Machine
It is to make the installation holes on the cooling water jacket to install the mold cavities.
High Frequency Quenching
The bevel gears have to be heat treated.
Our general engineer studies candle samples or candle drawings provided by customers and makes sure that they can be produced by machines. If not, he makes revision to candle shape or dimension and sends the revised drawing back to customers for approval.
One candle machine has hundreds or even thousands of parts. Our production engineer assigns the part-manufacturing tasks to suitable machine tools according to the accuracy requirement of general engineer. He measures the parts to guarantee that they conform with the drawings.
Our solder welders and assembly workers all have over 20 years of work experience. We are proud of this.
All machines are test run after being assembled. We take photos and videos of testrun for our customers.
We provide detailed operation manuals to teach customers how to operate and maintain the machines. Videos and photos are also provided as a support. We welcome customers to visit us to get trained. Whenever customers have any questions of candle production, we are glad to provide technical support.
All our machines have a one-year warranty.
Spare Parts and Wearing Parts
We usually send some wearing parts and spare parts with the machines. In the warranty period, if the spare parts are not damaged due to the misoperation, they are provided free, and the shipping is free, too. Out of the warranty period, customers have to pay for spare parts and shipping.
Q: What candle making machines do you supply? A: We supply manual candle molding machines, automatic candle pressing machines, candle dipping machine, candle wax filling machine, wax melting machine, wick waxing machine, wick cutting and assembling machine, wax bead spraying drum, etc. We have been in this business line since 1982.

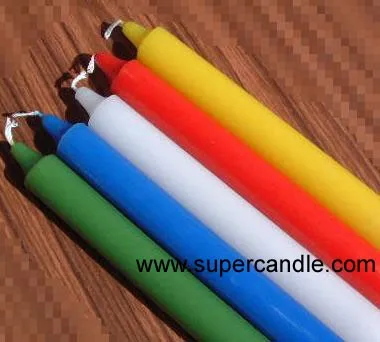

Q: If I want to produce stick candles, what machine should I use? A: The white stick candles are recommended to be manufactured with manual candle molding machines. Why? They are manual, not electric powered. The white stick candles are mainly manufactured in underdeveloped countries where power supply is unstable or scarce.
Q: Are stick candle molding machines easy to operate? A: They are simple in structure and maintenance. One worker can master all the skills of operating the machine in 3-4 hours. An experienced worker is able to look after 4 machines at the same time. Pour molten wax into the mold cavities of the machine, wait 15-20 minutes, and push the hand crank to eject all candles out.
Q: How many stick candles can I produce in one hour, if I use your manual stick candle molding machines? A: Generally speaking, you can produce 3 batches of stick candles with the machine. The machine is water cooled to reduce the wax cooling time. The quantity of candles depends on the quantity of mold cavities of the machine. We can build machines with 60, 120, 180, 240, and 500 mold cavities. That is to say, a machine with 500 mold cavities can produce around 1500 candles in one hour.
Q: Do your machines come with operation manuals and video? A: Yes, our machines are with detailed operation manuals and teaching video.
Q: Are your machines with a warranty? A: Yes, they are with a one-year warranty. If any parts are broken due to quality reason, we will send you free spare parts by FedEx or TNT Express. The parts damaged by improper operation of workers are not covered by the warranty. Customers have to pay for the parts and shipping cost.
Q: Can you custom make machines for us? A: Yes, we are happy to custom build machines for you. Please provide us with candle samples or drawings. You may rest assured that your machine will produce candles the same as your samples or drawings.
Q: What metal are the mold cavities of your stick candle molding machine made of? A: They are made of seamless copper tubes with mirror finish.
Q: Can you build stick candle molding machines with stainless steel mold cavities? A: We are able to custom build your machines with stainless steel mold cavities. Please specify in your inquiry, if you need.
Q: What is your MOQ? A: Our MOQ is 1 machine.
Q: What is the delivery time, if I buy a machine from you? A: Your machine can usually be ready for shipment around 30 days after your payment arrives.
Q: What is the package of your machine? A: The machine is packed in a plywood case reinforced with a steel tube frame.
